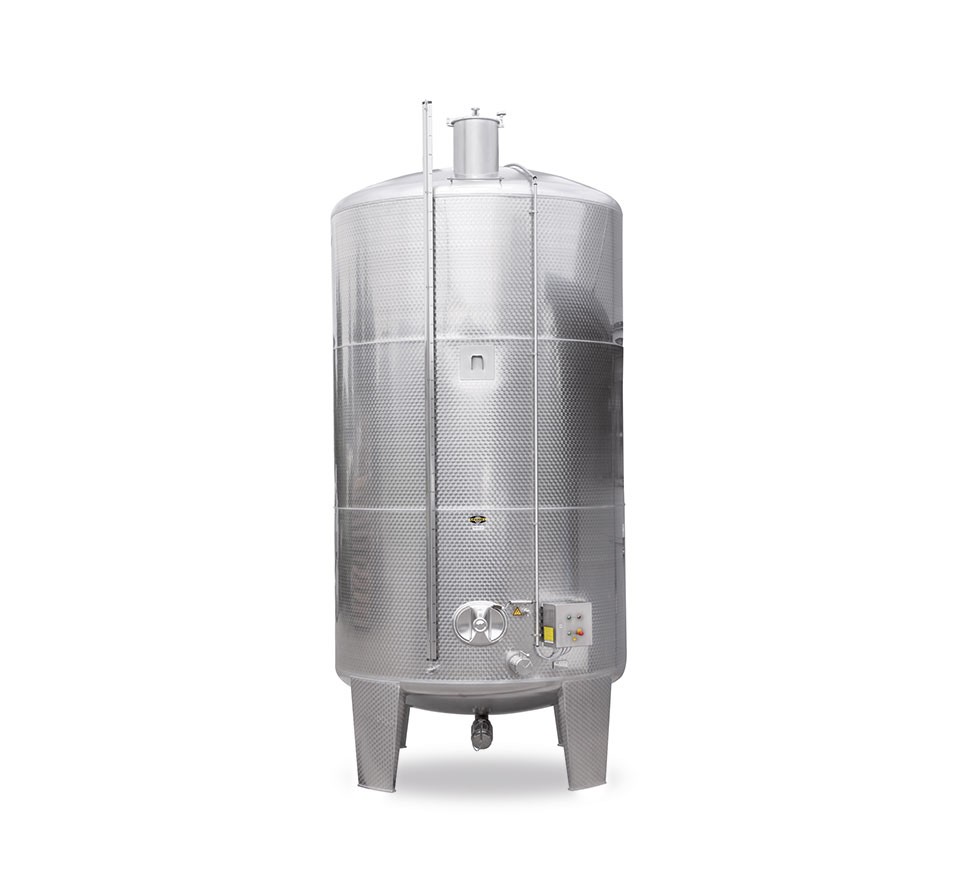

Description
Standard accessories
TANK TOP
- Up to tank- ø 2,000 mm made of AISI 316 stainless steel, surface IIId (2R), marbled outside
- From tank-ø 2,200 mm upwards made of AISI 316 stainless steel, surface IIId (2R) / IIIc (2B)
- Ladder safety bow, lifting lugs
TANK SHELL
- Made of AISI 304 stainless steel, surface IIId (2R), marbled outside
TANK BOTTOM
- Up to tank-ø of 2,000 mm made of AISI 304 stainless steel, surface IIId (2R), marbled outside
- From tank-ø of 2,200 mm upwards made of AISI 304 stainless steel, surface IIId (2R) / IIIc (2B)
- Free-standing on welded-on box-shaped legs
FILLER NECK
- Filler neck NW 400, located in tank top with an upright forward position (tank top with bead extrusion for complete ventilation)
- Flap lid with vent neck NW 50 Rd 78 x 1/6″
STIRRING DEVICE / REGULATION
- Stable stirring shaft, stirring blades for the homogenisation and release of the mash
- Electronic control system (stainless steel control cabinet, by default arranged on right), On / Off, connection 380 V, 50 Hz
- Stainless steel remover with scraper made of vulkollan (polyurethan) with gear motor (approx. 8 rpm), power output 3 kW up to ø 2,400 mm, electric connection on site
- Stainless steel remover with scraper made of vulkollan with gear motor (approx. 8 rpm), power output 5,5 kW at ø 2,800 mm, electric connection on site
MANHOLE
- 420 x 320 mm, door with bow and hand wheel with electric fuse
RACKING OUTLET
- Reinforcing plate with drilled hole 48 mm ø (to hold flap valve Gr. 37 or weld-on thread NW 50 DIN)
MASH OUTLET
- Welded-on neck with thread NW 125
- Discharge height X = 420 mm
