• Stainless steel frame of both types of Demotteur is assem-bling with a vibrating hopper of 1300×500 mm. The hopper is mounted on four damping pads and vibration is from two powerfull eccentrics motor.
• Vibrating hopper is equiped of an easy remove sceen (dry fruit version) or parallele fingers (IQF version). This is design to free the product on line output. This system allow an easy setup of position.
• Dry fruit demotteur work through an rotative drum made of stainless steel shafts to start to break down the bloc and regulate flow. An other drum cover of PVC finilize the work.

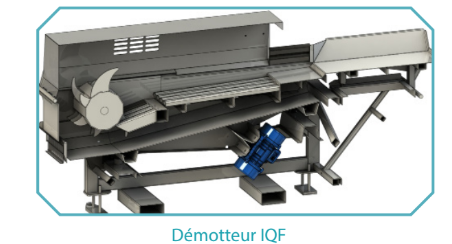

• IQF frozzen fruit demotteur break the blocks in two step, first by gravity then with a 254mm drum with fingers to cru-mble the blocks. Vibration is transporting block then cru-mbles through the line.
Dry fruit 200mm blocks max / IQF 250mm blocks max Flow : 1-2T/H dry fruit or 2-3 t/h IQF. All depend of feeding mode of the line.
IQF demotteur is not adapted to mass frozen block.
